3000L Fully Automated Big Capacity Chocolate Grinder Conche Machine
Product Description
Application
Chocolate grinder conche machine is the universal solution for
making pure chocolate, compounds, coatings, pralines, truffles and
fillings,etc from small to medium capacities.
Chocolate conche refiner is versatile which means 3 in 1
manufacturing solution fullfillng the function of raw materials
mixing, refining and conching. Once a mixed mass is procured, the
refining and conching process will start.
Our chocolate conche refiner has a main shaft which equipped with
blades and a manual pressure adjustment wheel to adjust the
pressure on the raw materials between the baldes and lining bars.
It allows reliable process control to achieve and maintain constant
mass quality between batches.
Moreover, our conche refiner has solenoid valve and automatic
temperature water system. It makes proper tempeature inside conche
refiner come ture and customer will obtaine delicate chocolate
mass.
Technical parameters
| Model | 20 | 100 | 500 | 1000 | 1500 | 2000 | 3000 |
| Capacity | 20L | 100L | 500L | 1000L | 1500L | 2000L | 3000L |
| Grinding Fineness(micron) | 20-25 | 20-25 | 20-25 | 20-25 | 20-25 | 20-25 | 20-25 |
| Main Axle Rotating Speed(rpm) | 93 | 48 | 33 | 35 | 35 | 35 | 35 |
| Grinding time(h) | 8-10 | 12-16 | 16-22 | 16-22 | 16-22 | 16-22 | 16-22 |
| Main moter power(kw) | 1.5 | 5.5 | 15 | 22 | 30 | 37 | 45 |
| Electrical heating power(kw) | 0.6 | 2.5 | 5 | 2×2 | 6 | 3×2 | 12 |
| Weight(kg) | 295 | 1050 | 2572 | 3050 | 4850 | 5350 | 7500 |
| Dimension(mm) | 920×600×1110 | 1200×1150×1050 | 2465×1146×1312 | 2627×1280×1520 | 2918×1650×1920 | 3040×1912×1920 | 3450×2016×2280 |
Main Picture
Detail Picture
Features
1. Material of blades and lining bars are Manganese steel which
with long living time. Moreover, every piece of lining bars will
be processed and strengthened by our special heating system.
2. It’s controlled by control panel. But PLC control is optional;
3. It’s suitable for medium and big capacity chocolate
manufacturers and confectionery manufacturers;
4. Our chocolate grinder conche machine are made by strict
manufacturing technique, so its performance is stable always.

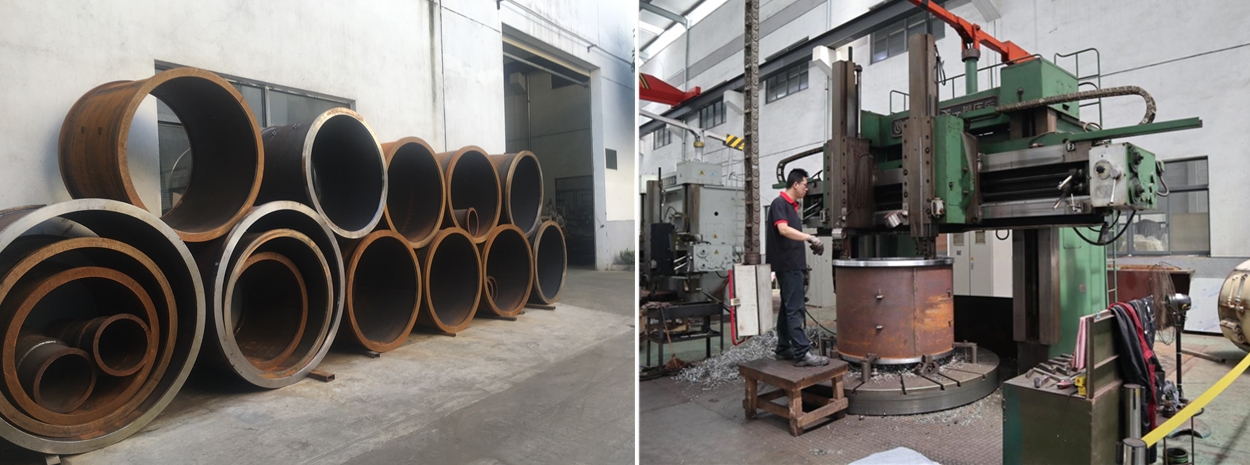

Processing Picture
Workshop
1.Since our chocolate grinder conche machine is very convenient for
customers in chocolate industry and confectionery industry,
it’s one of our hot sale products always.
2.We can make 20 sets of chocolate conche refiner/month. Moreover,
except motor and electrical components, almost all parts are made
by ourselves. So we can control our quality very well.
Company Introduction
SuZhou Harmo Food Machinery is founded in Suzhou, China. We are
professional chocolate machine supplier with full set of chocolate
machine manufacturing facility. Except motors and electrical
components, almost all parts are made by ourselves, so we can
control quality from raw materials to finished products.
We export our chocolate machines to USA, Canada, South America,
Middle East, North Africa, Eastern Europe and Asia.What made our
company so special is our manufacturing experience which supply the
best use of chocolate equipment and production processes for our
customers around the world.
Quality is our culture, and service is our principle. This is why
quality takes precedence over the price always. We know that you
value service and we can prove it for you. So when we receive your
questions,we strive to answer as promptly as possible.
It’s our purpose that learn from customers, work with customers and
provide reliable chocolate equipment and proper production
solutions for customers.
Certificate
We have CE certificate and IS09001, morover, we can customize UL
standard chocolate machines for customers from USA and Canada. Our
products have been approved by our customers since 1994.
Package & Shipping
FAQ
Q1: Can you provide invitation letter for customers and arrange
pick-up at the airport, if they want to visit your factory?
A1: Yes. We can provide invitation letter and arrange our driver or
sales to pick up customers at Shanghai airport or train
station.
Q2: What is your warranty period?
A2: Our warranty is 12 months or 14 months after shipment.
Q3: Will you test the machine after manufacturing?
A3: Yes. All our machines will be tested with oil or raw materials
before shipping by our technician.
Q4: Can you supply machines which conform to European Standard or
American standard?
A4: Yes. We exported our machines to USA, Canada, Hungary and
Belgium, etc.
Q5: What can we do if goods were damaged during shipping?
A5: Firstly, We will pack goods and fix them well in our factory;
Secondly, If goods were damaged during sea shipping, we will
deliver parts to you try our best. So you can replace damaged parts
and run machines ASAP;
Q6: Can you arrange loading in your factory if customer bought
products from different suppliers?
A6: Yes,we can load all products in our factory and ship all goods
by one or two containers.
Q7: Do you provide installation and commissioning service?
A7: Yes, we can deliver our technician to do installation and
commissioning in customers’ factory.
After installation, our technician will provide training for stuff
in the factory.
Q8: Do you provide recipe if customer buys whole production line?
A8: Yes, we can provide a basic recipe, then customer can adjust
the recipe according to customer's local market demand.
Q9: Do you provide instruction manual and maintenance schedule?
A9: Yes. We will provide detailed instruction manual and
maintenance schedule before shipping.
Q10: Can you make customized machine?
A10: Yes, we can customize the machine according to the final
product. Also we can provide turnkey project for our customers.
